MODULE FOR PWM PROPORTIONAL SOLENOID VALVE. SETUP: REMOTE POTENTIOMETER. NO STOP. NO CURRENT REGULATION

This module generates a PWM supply (no current regulation) for the coil of the valve depending on the position of the remote potentiometer.

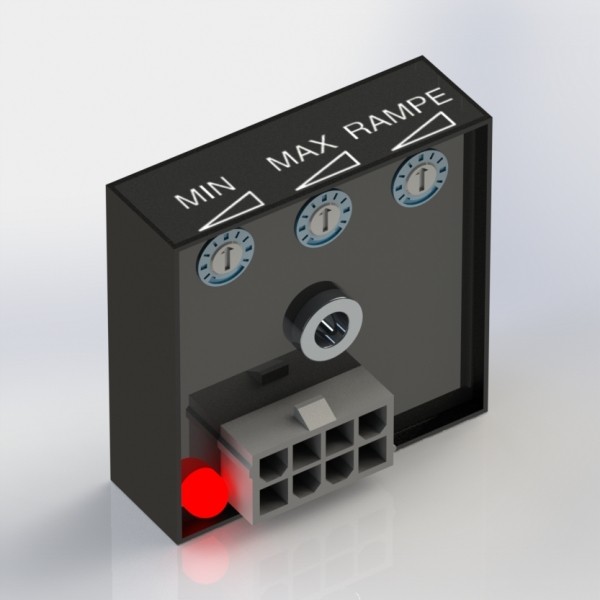

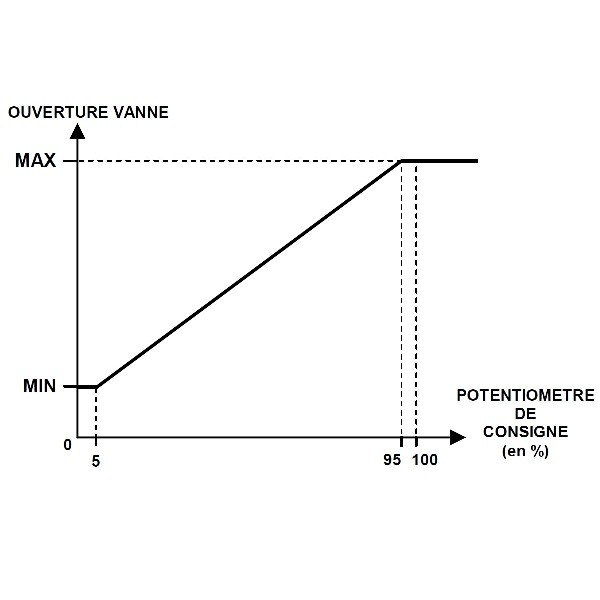

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

See technical documentation (links below)

Applications :

• controlling a PWM hydraulic proportionnal valve 12VDC and 24VDC.
• controlling a PVG hydraulic proportionnal valve (with PWM-VOTAGE adaptator)
• controlling speed of an hydraulic motor througt a proportional valve.
