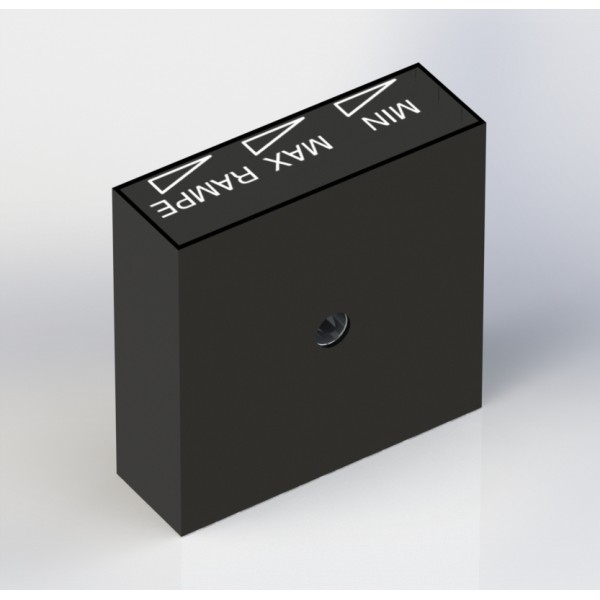

MODULE FOR PWM 1KHz PROPORTIONAL SOLENOID VALVE. SETUP BY ONE 0-10V INPUT. STOP ON MINIMUM

Model WAAB1109

This module regulates the current drawn by the coil of the valve depending on an input 0-10V signal.

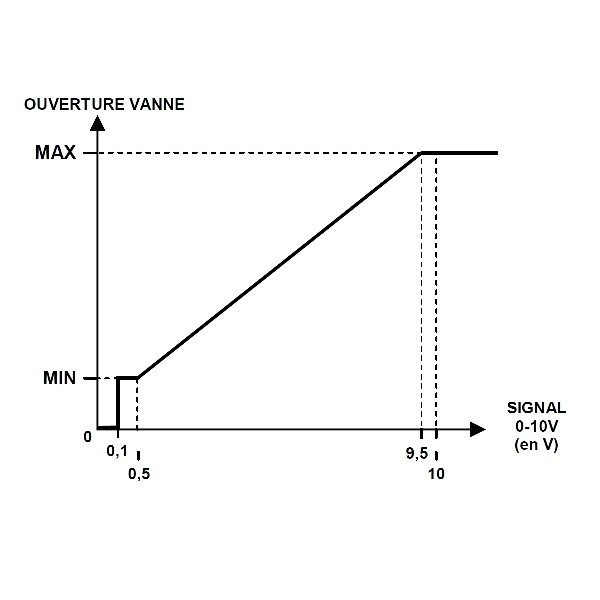

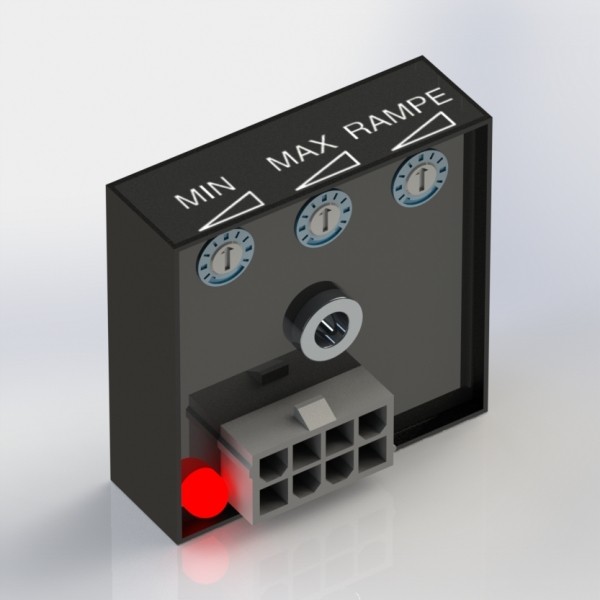

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

Off in minimum position of the potentiometer.

See technical documentation (links below)

Applications :

controlling an hydraulic proportionnal valve 12VDC and 24VDC.
controlling speed of an hydraulic motor througt a proportional valve.

Have a question, a change request, send us an email to gv@ngv1.com
