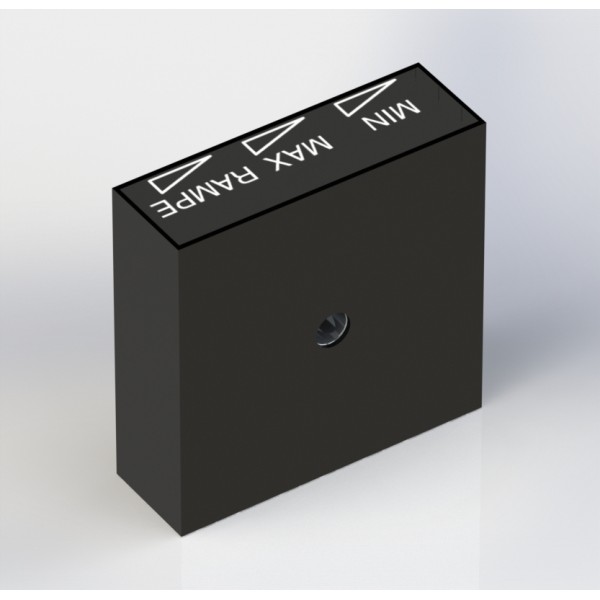

MODULE FOR PWM PROPORTIONAL SOLENOID VALVE. SETUP: MORE AND LESS INPUTS 50 STEPS. STOP ON MINIMUM. WITHOUT MEMORISING

This module regulates the current drawn by the coil of the valve depending on the number of MORE and LESS received pulses.

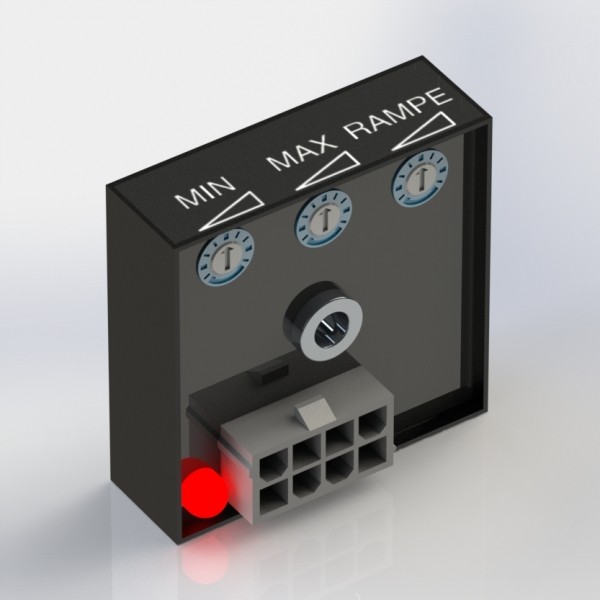

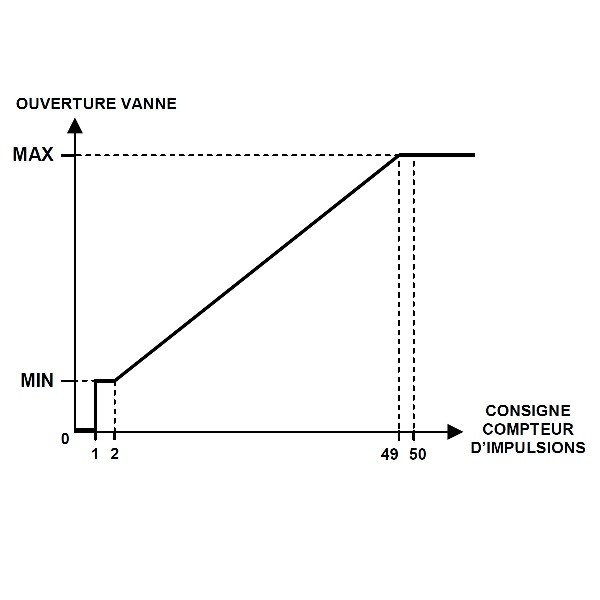

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

Off in minimum position of the potentiometer.

See technical documentation (links below)

Applications :

• controlling an hydraulic proportionnal valve 12VDC and 24VDC.
• controlling speed of an hydraulic motor througt a proportional valve.
