MODULE FOR PWM PROPORTIONAL SOLENOID VALVE. SETUP BY ONE 4-20mA INPUT. STOP ON MINIMUM

Model WAAB1104

This module regulates the current drawn by the coil of the valve depending on an input 4-20mA signal.

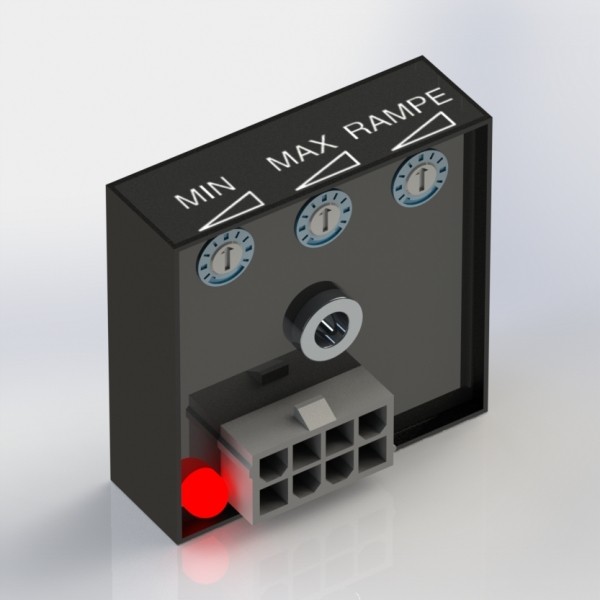

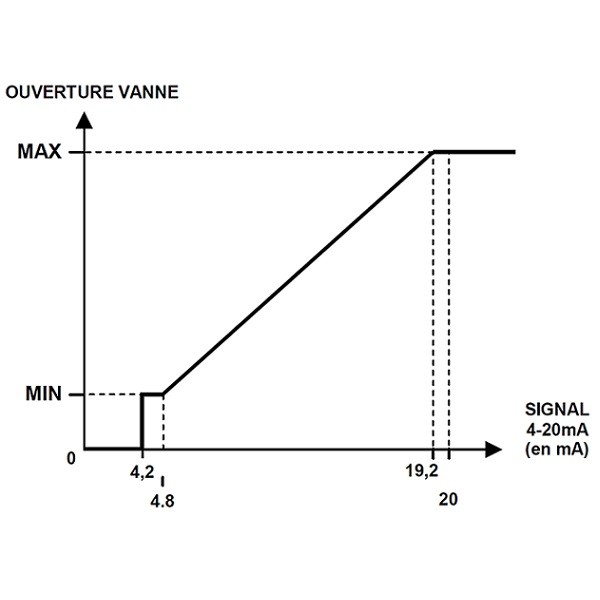

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

Off in minimum position of the potentiometer.

See technical documentation (links below)

Applications :

controlling an hydraulic proportionnal valve 12VDC and 24VDC.
controlling speed of an hydraulic motor througt a proportional valve.
