MODULE FOR PWM PROPORTIONAL SOLENOID VALVE. SETUP: INTEGRATED POTENTIOMETER. STOP ON MINIMUM. 2 SPEEDS. 6 WIRES

Model WAAB0301

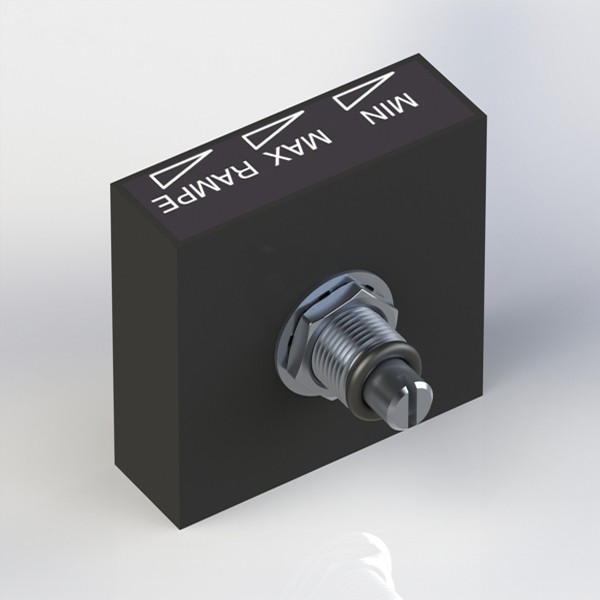

This module regulates the current drawn by the coil of the valve depending on the position of the potentiometer on the front panel.

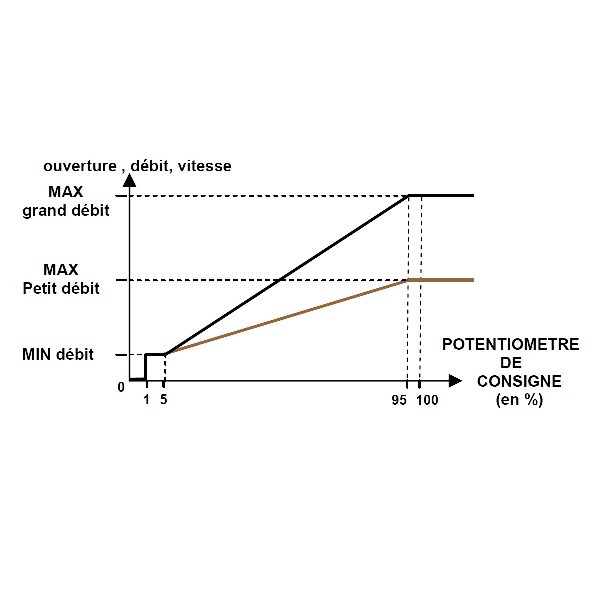

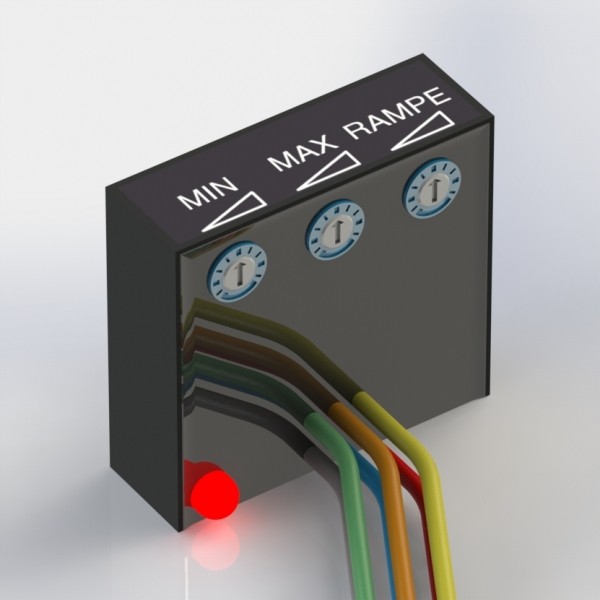

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

Off in minimum position of the potentiometer.

See technical documentation (links below)

Applications :

controlling an hydraulic proportionnal valve 12VDC and 24VDC.
controlling speed of an hydraulic motor througt a proportional valve.
