MODULE FOR PWM PROPORTIONAL SOLENOID VALVE. SETUP: INTEGRATED POTENTIOMETER. STOP ON MINIMUM. NO CURRENT REGULATION

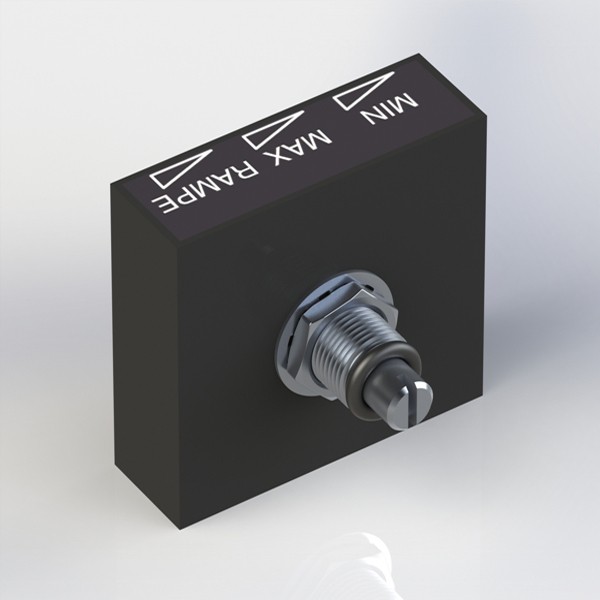

This module generates a PWM supply (no current regulation) for the valve depending on the position of the potentiometer on the front panel.

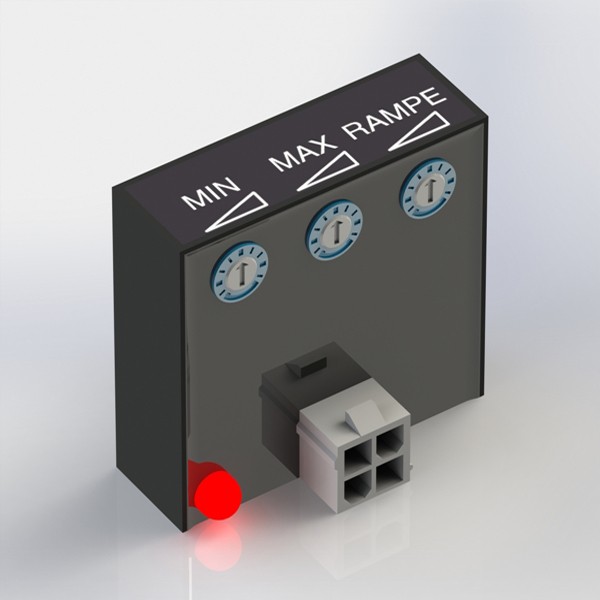

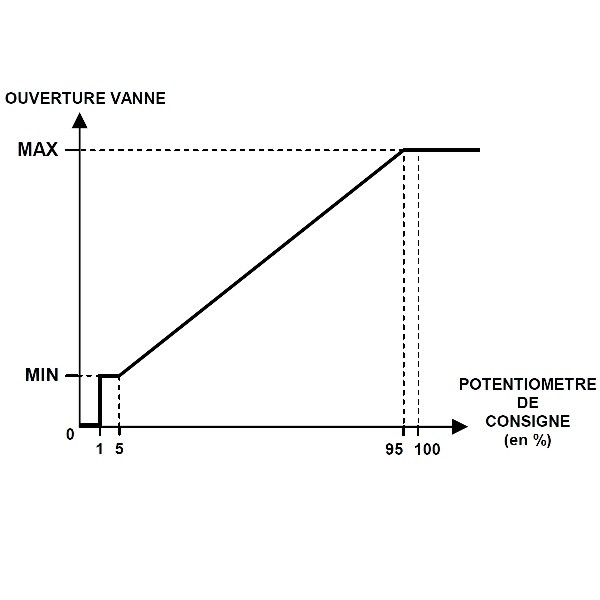

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

Off in minimum position of the potentiometer.

See technical documentation (links below)

Applications :

• controlling an hydraulic proportionnal valve 12VDC and 24VDC.
• controlling speed of an hydraulic motor througt a proportional valve.

Have a question, a change request, send us an email to gv@ngv1.com
